Electric lining flange rotary steel globe valve flow control valve

Brand
FRY
Article No
S1223388983
Supplier ID
S0060
Supply Capability:
300
Lead time:
15 DAYS
Trade Terms:
Payment Terms :
TT in Advance
Certification :
Origin :
TIANJIN CHINA
Ref Price
USD 350 /Sets
1 (Min. Order Quantity)
Enquire Now Add to favorites

Electric Lining Flange Rotary Steel Globe Valve Flow Control Valve

.jpg

Product Introduction

In order to make the valve both metal strength and conrosion resistance. The company's various plasticlined valves: the shell is made of cast steel, stainless steel. precision cast ductile iron. etc.. and the components of the inner cavity and the inner cavity of the valve are made of conrosion-resistant enaineering plastics. Lining (coated) material, using advanced steel-molding technoloay. fiuoroplastics (F46, F4. F3 PFA PVDF) and reinforced polvene (FRPP) with different thicknesses of 3-8mm depending on the size of the lining. ulra high molecular weight polyethylene (referred to as PE), ethylene, propylene, butene copolymer (referred to as PO), the filler used PTFE as a sealing ring, all kinds of valves] have been testec by electric spark and hydrostatic test. Allkinds of steel-lined plastic valves have the characteristics of high strenath, flexible opening and cosing, good sealing, anti-aging, and resistance to various types of acid. alkali and salt.

Product Application

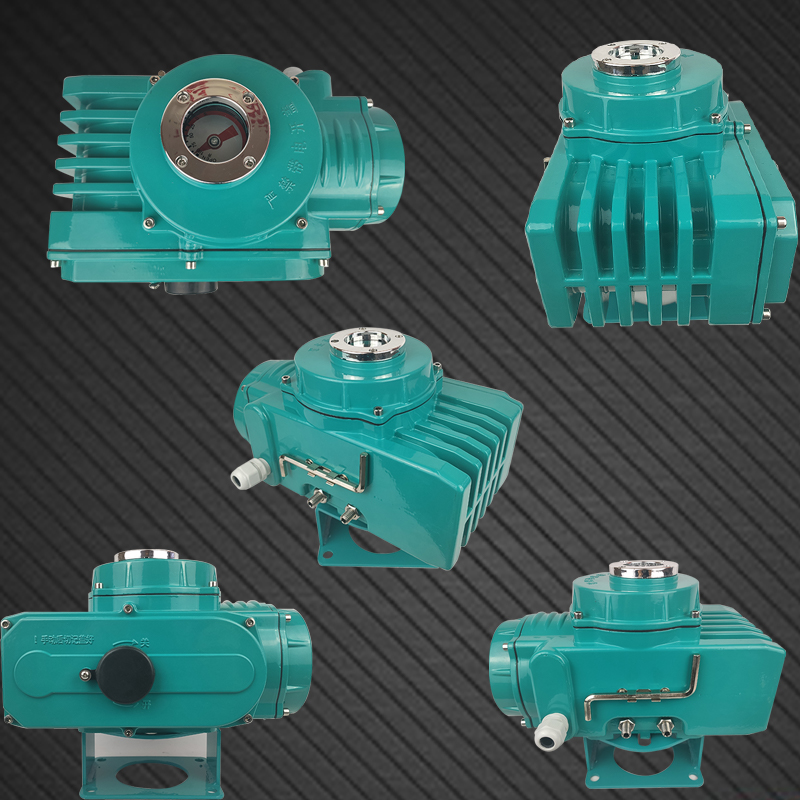

electric actuator.jpg



Valve Parameters


NO.

Name

Cas ateel

Stainless steel

C

P

R

PL

RL

1

Body/Cover disc

WCB

CFM8

CF8M

CF3

CF3M

2

Wire rod

2Cr13

1Cr18Ni9

1Cr18Ni12Mo2Ti

00Cr17Ni14Mo2

1Cr17Ni14Mo2

3

Activity bolt

35

1Cr17Ni9

1Cr17Ni2

1Cr17Ni2

1Cr17Ni2

4

Lining

FEP(F46),PTEE(F4),PFA,PO,PE

5

Packing

FTFE(F4)

6

Packing cover

WCB

CF8

CF8M

CF3

CF3M

7

Stem nut

ZCuAL10Fe3,QT450

8

Bolt

35

1Cr17Ni12

1Cr17Ni2

1Cr18Ni9

1Cr19Ni9Ti

9

Nut

45

0Cr19Ni9

0Cr18Ni9

0Cr18Ni9

0Cr18Ni9

10

Hand wheel

A3
