3D Welded Wire Mesh Fence - China Factory Exporter

Perfect 3D Curvy Welded Fence for Airports, Parks, Schools & Sports Fields ... ...

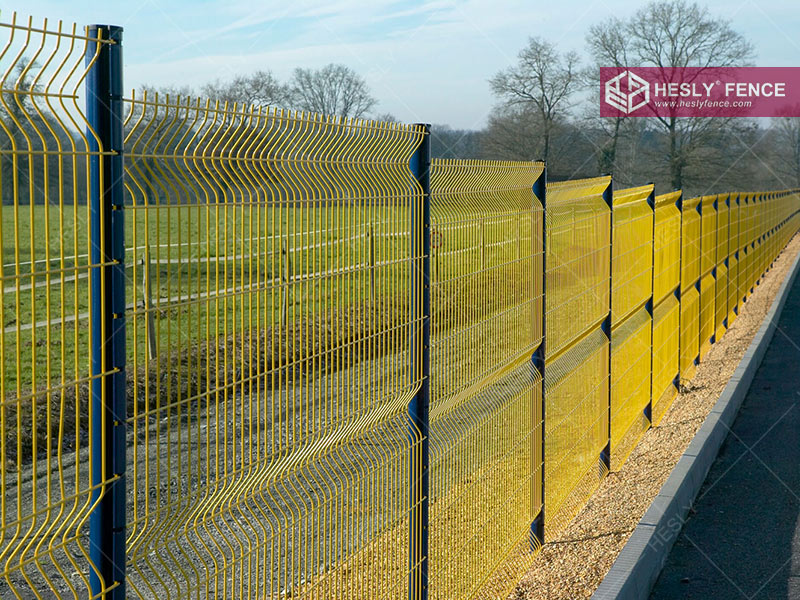

3D Curvy Wire Mesh Panel Fence is a kind of specially designed welded wire mesh with V-shaped bending curves in its longitudinal direction. It is made of high quality carbon steel wires where wires in the horizontal and vertical direction are welded at their junctions to provide a rigid wire mesh fence. Generally, the number of V-shaped curves varies as the height of welded wire mesh varies. Its attractive appearance, rigid structure and excellent visibility make it become a popular security fence that is widely used in railways, airports, schools, factories, residential areas, gardens, parks, sports stadiums, etc.

Benefits of 3D Welded Mesh Panels

• Rigidity: heavy welded mesh panels with 2.5m centers offer a higher level of rigidity

• Unlimited color options: the panels powder coated finish allows for a large choice of color finishes to suit your project

• Privacy screen: panels can be combined with Betafence's Screeno® Line PVC privacy slats to create privacy and extra security

• The complete package: available as a complete system including fencing panels, posts, and gates


Panels

• The 3D mesh panels have a width of 2500 mm and a height from 630 to 2500 mm.
• The panels have vertical barbs of 30 mm on one side and are reversible (barbs at the top or at the bottom).
• Mesh sizes of 3D mesh panels are 200 x 50 mm and 100 x 50 mm as standard.
• The heavy wires, with a diameter of at least 4.5 mm guarantee an extraordinary level of rigidity.


Coating Technique and Colors

	PRE-GALVANISED Cost effective, strong and durable All hesly welded mesh panels are pre galvanized
	POLYESTER POWDER UV resistant, durable, beats rust, appealing aesthetic Polyester powder coating available as a final finish to all pre-galvanised wire mesh panels and components
	PVC COATED Corrosion protection, resistance to high UV, intense heat, salt and sand abrasion, impact damage, graffiti damage Cosmetic appearance
	HOT DIP GALVANISED For coastal and highly corrosive environments The entire finished product emerges from the molten tank fully coated with a layer of zinc The thickness of the zinc coating (average coating fabrication) — 80μm

Colors

The popular polyester powder color listed below. More and other colors out of RAL Collection are available on request.

Dark Green	Grey	Tomato Red	Traffic Orange	Traffic Yellow	Gentian Blue
Steel Blue	Traffic Red	Mint Green	Black	Signal Blue	Pastel Turquoise
Luminous Yellow	Pure White	Other color is available

HeslyFence_China

Packaging

After Sales Warranty

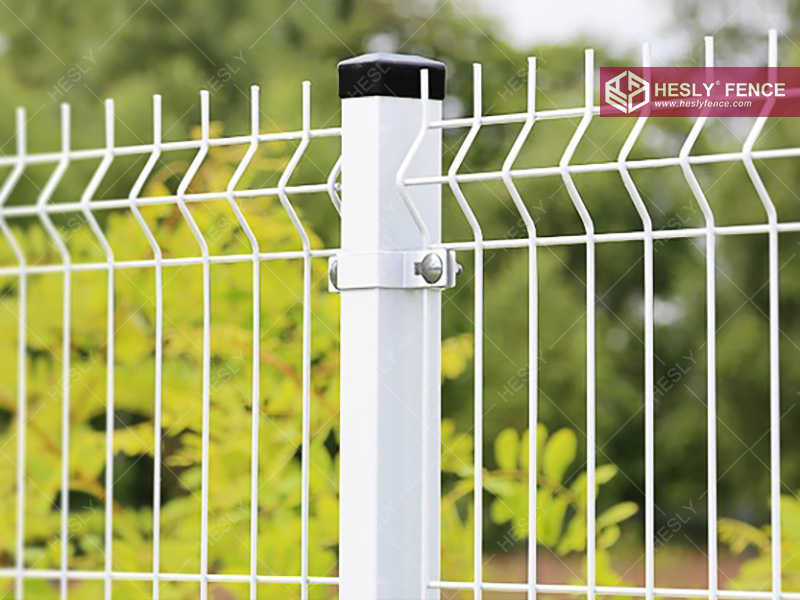

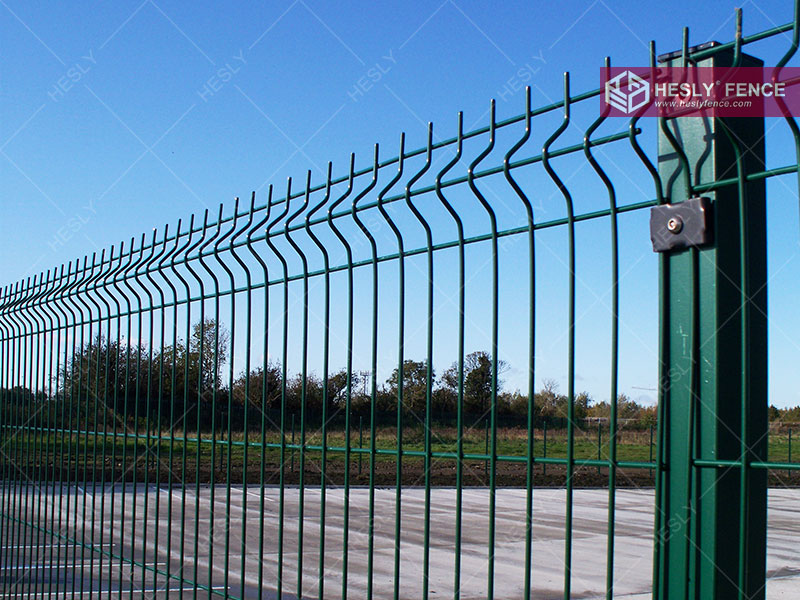

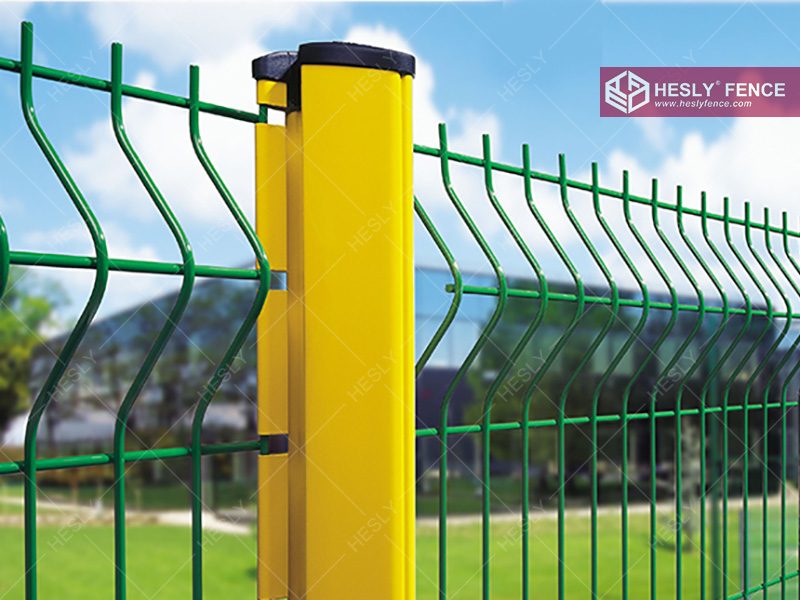

“3D” Welded Mesh Panel Fence

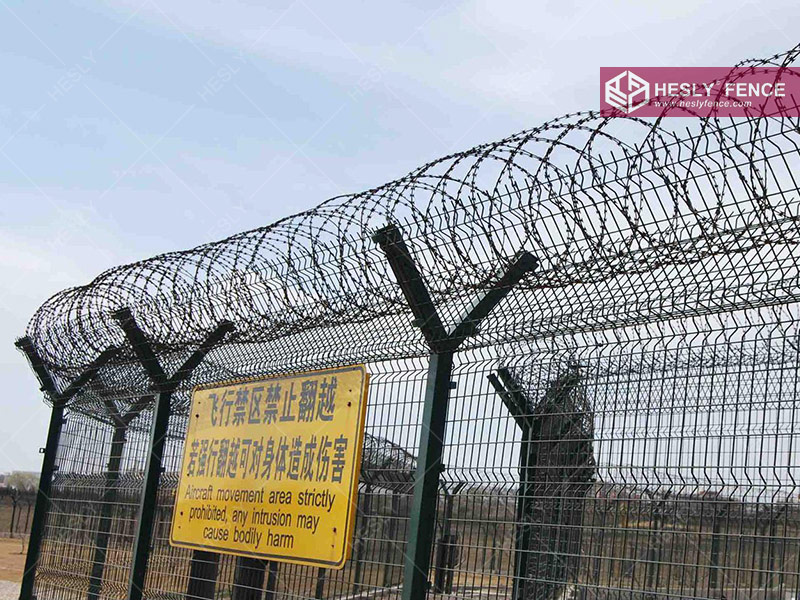

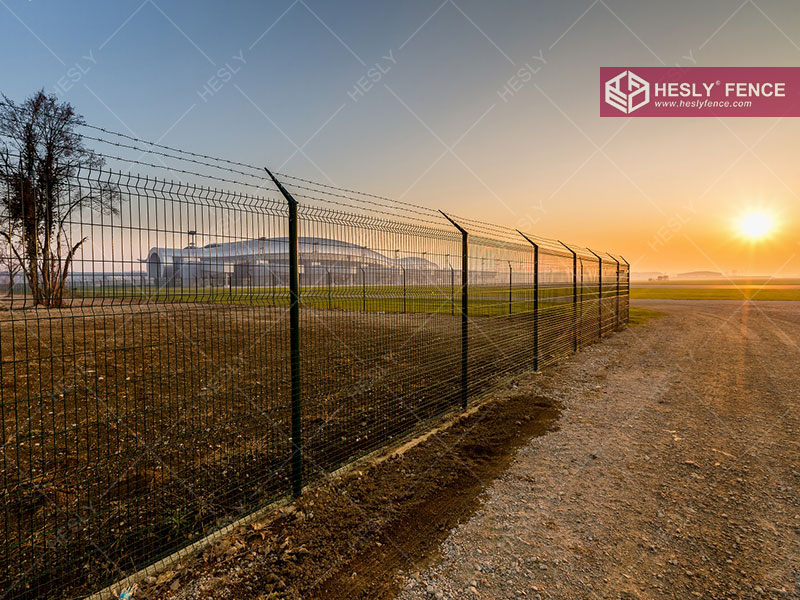

The 3D Welded Wire Mesh Fencing Panels are the basic fence body of HeslyFence family. They are widely used in Airport Security Protection, infrastructure, civil, industrial, commercial & demolition sites, construction sites, accident spots and a wide range of major public events.

3D Welded Mesh Fencing	Airport Security Fence	Welded Wire Fence
3D Welded Wire Fencing	3D Wire Mesh Panels	3D Wire Mesh Fence Panels

Package & Delivery

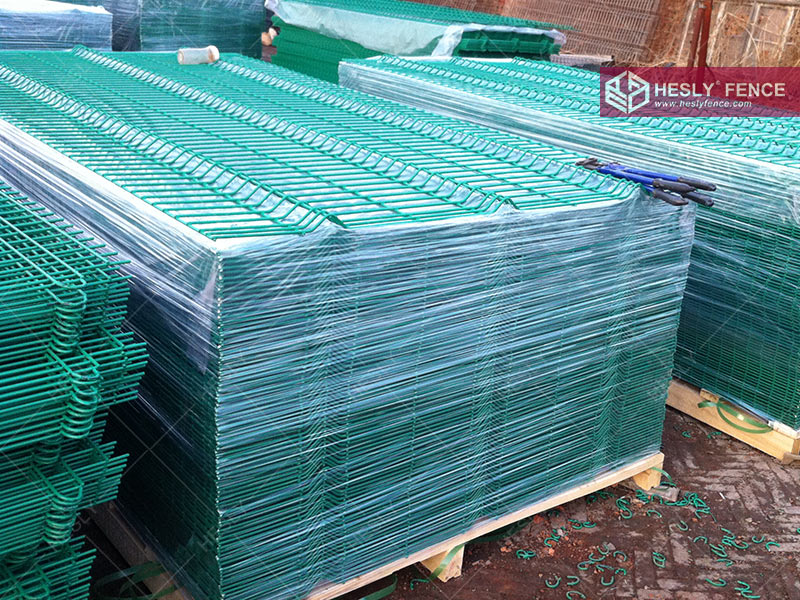

In general, for the standard size wire mesh fence panels and posts, we package them with plywood pallets. It can be unloaded easily with forklift and save unloading cost and time.

If the posts are with "V" arms, in order to save container numbers and shipping cost, we load them in bulk.

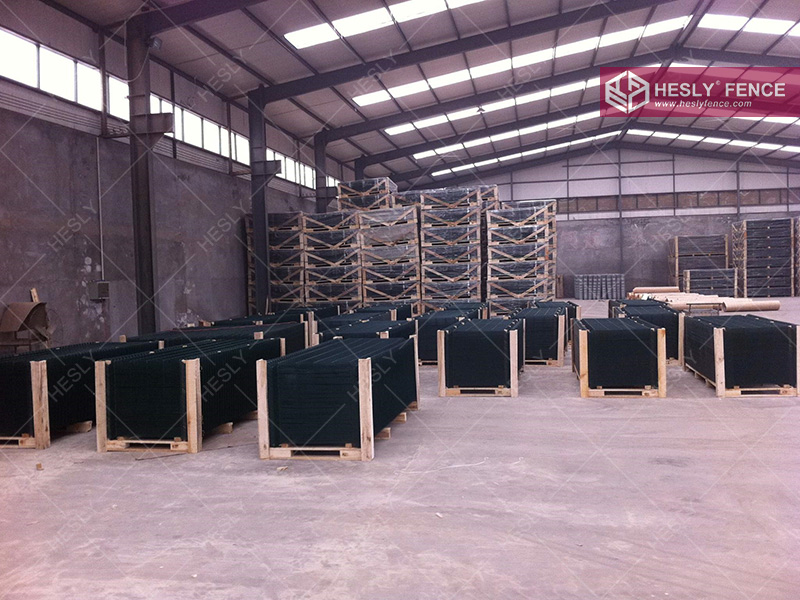

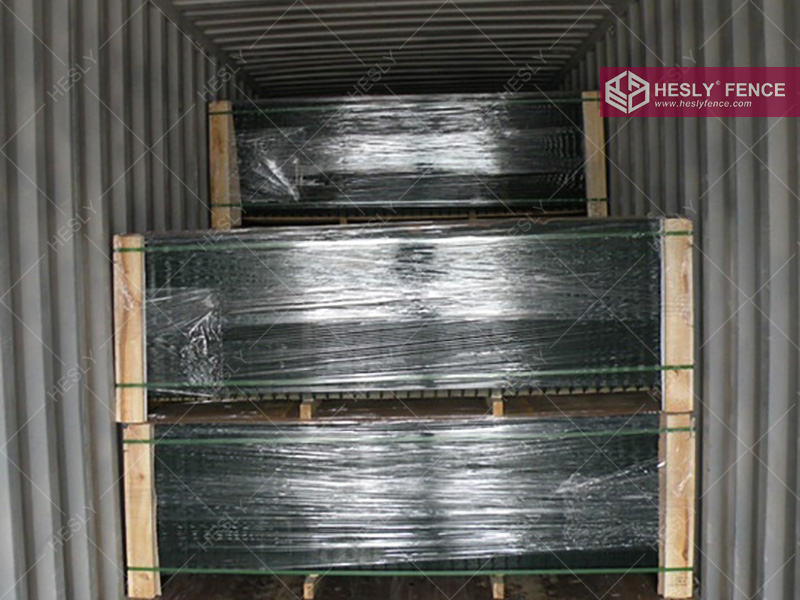

Package In Pallet	In Stock	Container Loading
