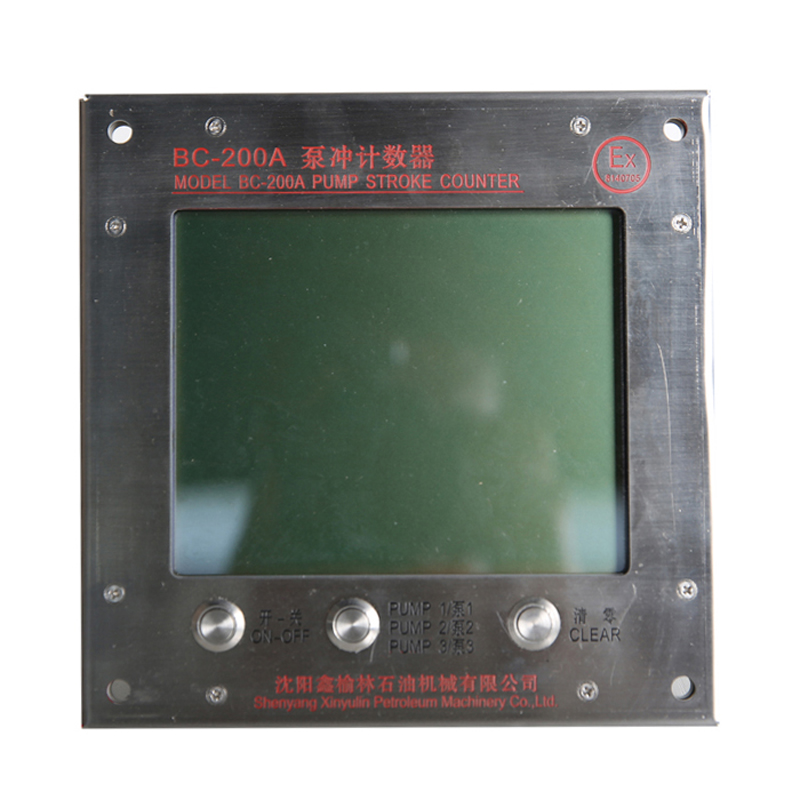

Pump Stroke Counter
Brief introduction
The pump stroke counter is used to measure the number of strokes and number of strokes per minute (i.e. pump stroke frequency) of reciprocating mud pump, can display the total number of strokes and number of strokes per minute of three mud pumps, providing accurate data such as the amount of mud injected into the wellbore and injecting speed for drillers. Besides, it has memory function, moisture-proof and waterproof function, and explosion-proof performance. Therefore, it provides important technical support and data guarantee for drilling operations.
Performance and features
The pump stroke counter is designed with an operation button, which facilitates the operator to view data or reset the pump stroke counter when necessary. It is powered by batteries and can adapt to field drilling operations, with intrinsic safety explosion-proof performance. It has stainless steel housing with anti-corrosion performance. It is provided with easy-to-read display screen and user-friendly control buttons. Besides, it is maintenance free, calibration free, and long in service life.
Technical parameters
| Power supply | ER26500 3.6V industrial lithium battery. |
| Signal input channel | 3 channels |
| Accumulated value per channel | 0 ~ 99,999 |
| Number of strokes per minute displayed | 1 ~ 999 |
| LCD display screen | height |
| Ambient temperature | -20ºC~70ºC |
| Display the number of strokes of three mud pumps | Range: 1) Number of strokes of pump 1, pump 2, and pump 3: 0 ~ 99999 2) Total number of strokes (sum of strokes of pump 1, pump 2, and pump 3): 0 ~ 99999 3) Pump stroke frequency: 0~999 Magnetic sensor or mechanical switch sensor |
