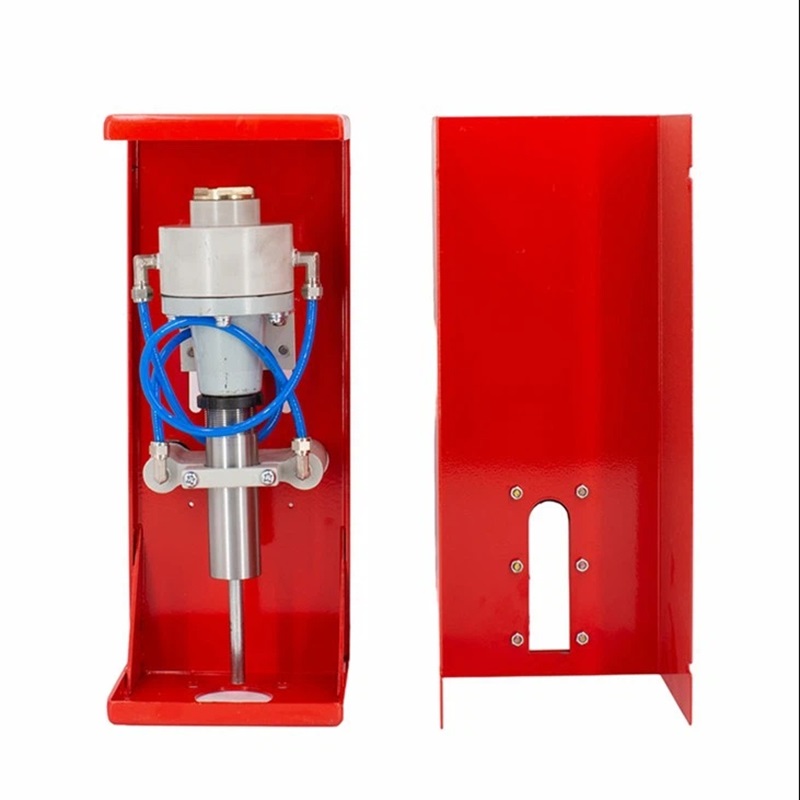

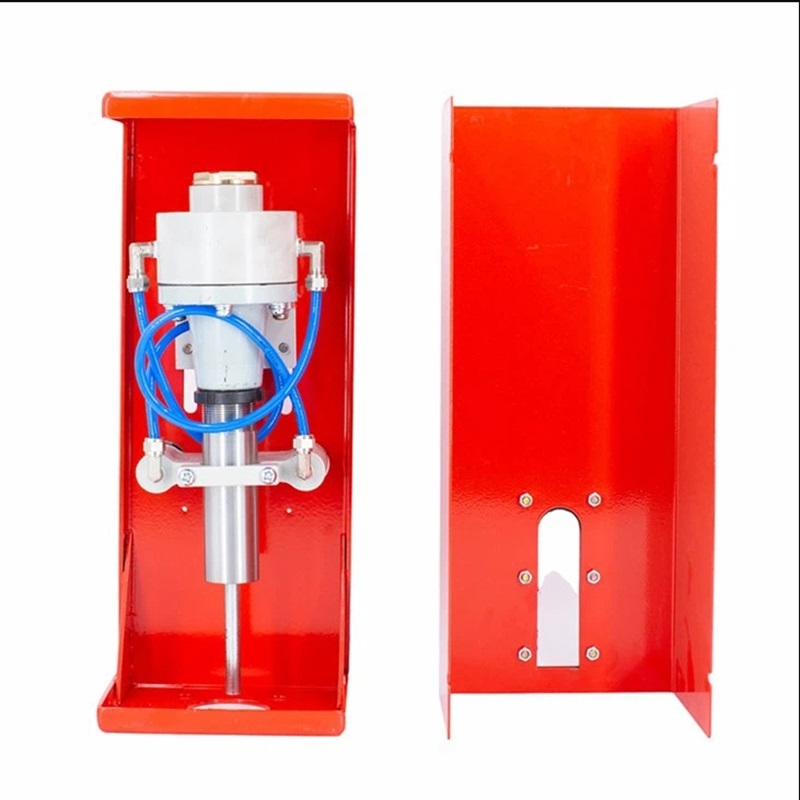

Valve Position Shifter for Choke Manifold Control Panel

Supply Capability:
100000
Lead time:
15-30 working days after payment
Trade Terms:
Payment Terms :
TT in Advance
Certification :
Origin :
China
Ref Price
USD 350 /Sets
1 (Min. Order Quantity)
Enquire Now Add to favorites

Brief introduction

The valve position transmitter is used in conjunction with the throttle manifold control box to display the hydraulic throttle valve opening/closing position on the operation panel, enabling operators to monitor and control the working status of the throttle manifold in real time.

Performance and features

The extended end of the piston rod of the hydraulic throttle valve is in contact with the mandril of the valve position transmitter, so that the valve opening/closing state is transmitted to the valve position transmitter through the displacement of the piston rod in the form of mechanical force, after which the valve position transmitter converts the received mechanical force into air pressure signal and sends the signal to the valve opening gauge on the hydraulic control box to display the opening position of the hydraulic throttle valve with the change of air pressure, enabling the operators to adjust the bottomhole pressure to ensure the safety and efficiency of the operation.

Technical parameters

Measurement of valve stem stroke35 mm, 47 mm, 54 mm
Air source pressure0.35MPa
Output signal20~170KPa
Accuracy level1.5



Packaging

After Sales Warranty

Standard export package

One year warranty is provided from the date of shipment
