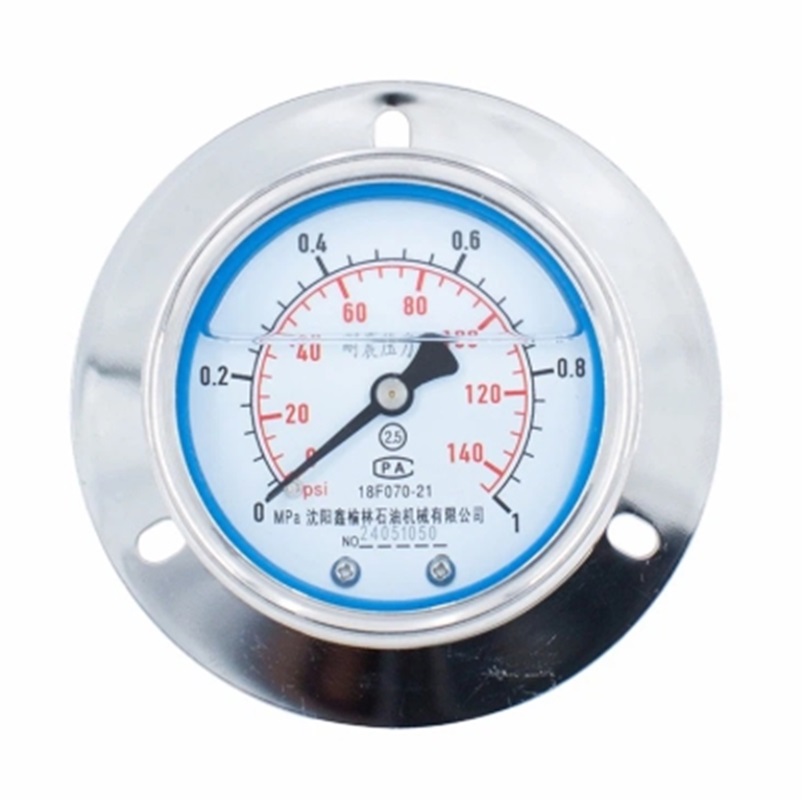

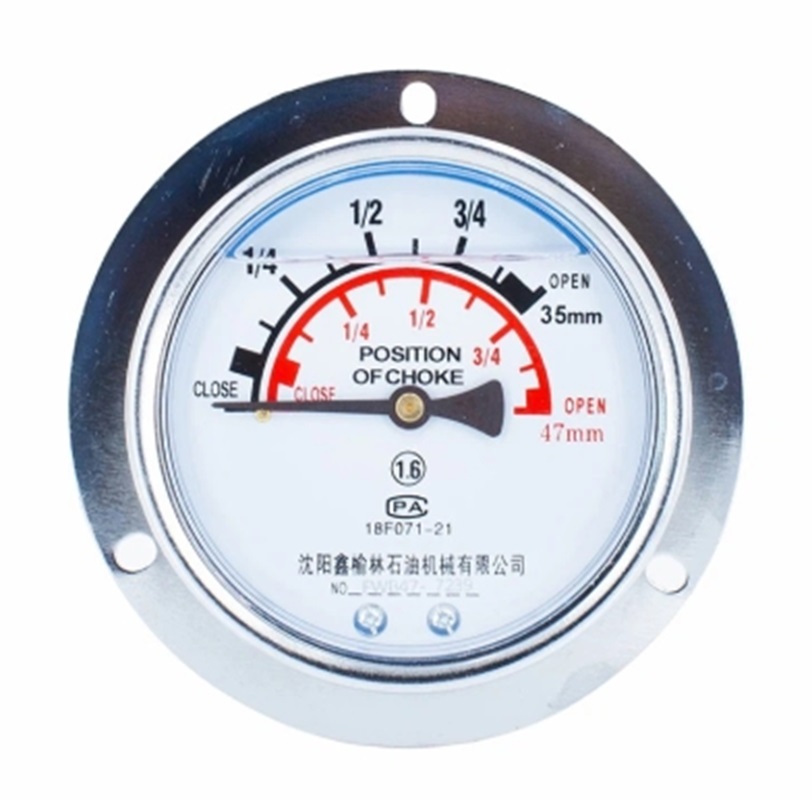

Choke Manifold Control Panel Pressure Gauge
Brief introduction
Instruments play a crucial role in drilling hydraulic equipment, mainly used to monitor and display various parameters during the drilling process to ensure the safety and efficiency of drilling operations. This standpipe/casing pressure gauge is a pressure measuring instrument designed specifically for operations in high-vibration environments. It is used in conjunction with standpipe and casing pressure sensors to display standpipe pressure and casing pressure. It has a sturdy structure, superior vibration-proof performance, accurate readings, and stable and reliable operation. It is divided into digital electronic type and mechanical pointer type.
Performance and features
This standpipe/casing pressure gauge has the characteristics of sturdy structure, superior vibration-proof performance, accurate readings, stable and reliable operation, etc.
Technical parameters
1. Digital electronic type:
Display digits: 5, accuracy: 0.5% FS ± 1 word, input signal: 4~20mA,
power supply: 24VDC
2. Mechanical pointer type:

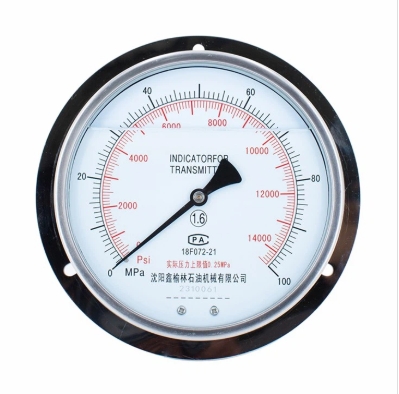

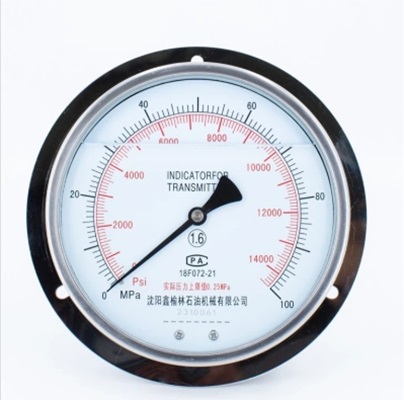

1) 270° dial (accuracy level: 1.6), dial diameter: φ150; display range: 50,100, 135MPa, medium: gas.

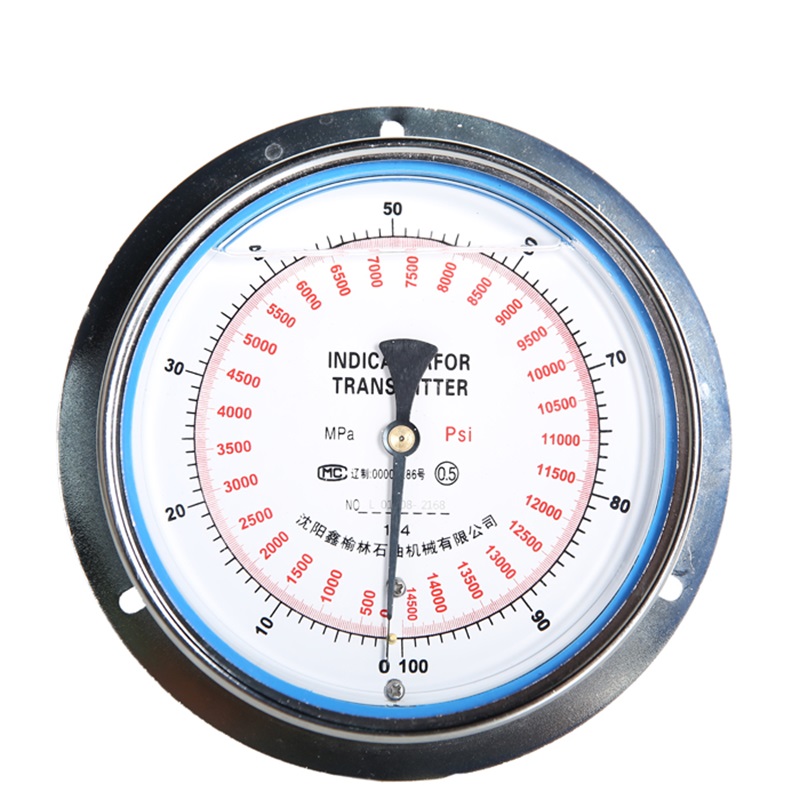

2) 360° dial (accuracy level: 0.5), dial diameter: φ150; display range: 50,100, 135MPa, medium: hydraulic oil.
Packaging
After Sales Warranty

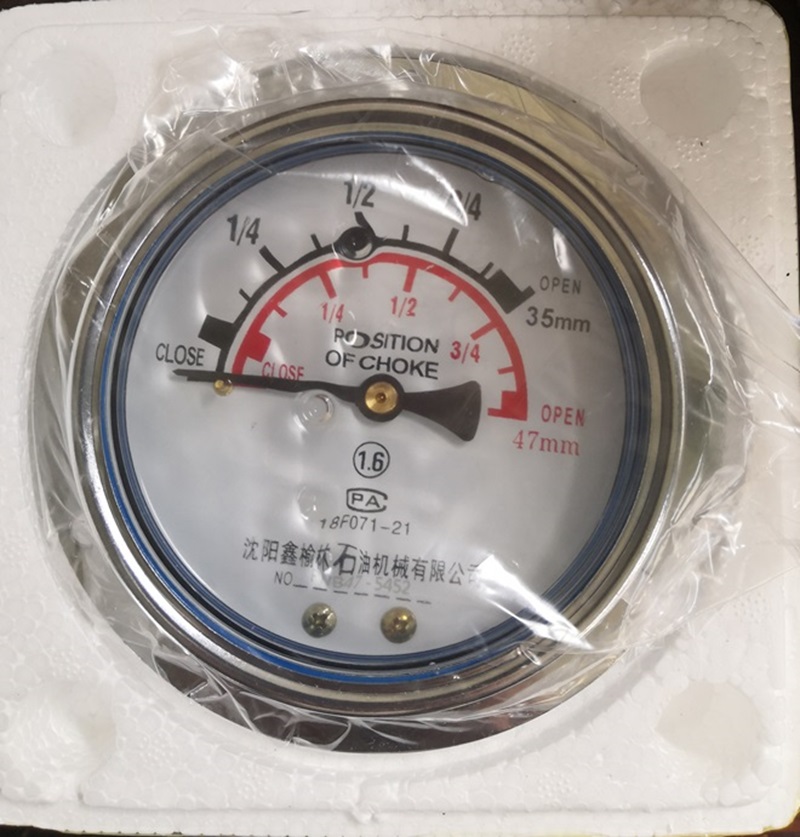

Standard export package
One year warranty is provided from the date of shipment
