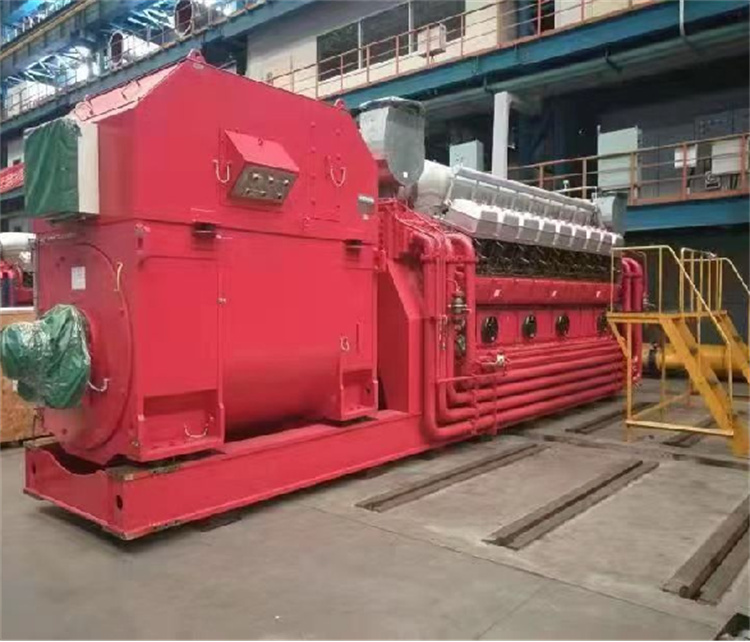

DOOSAN MAN 18V28/32 HFO generator sets 4050KW*2 for 8MW power station
The MAN 18V28/32S is a high-performance, four-stroke, medium-speed diesel generator set designed for heavy fuel oil (HFO) operation. It is widely used in marine propulsion, offshore platforms, and land-based power plants due to its reliability, fuel efficiency, and compliance with international emission standards.
| Parameter | Details |
|---|---|
| Engine Model | MAN 18V28/32S |
| Engine Type | 4-stroke, V-type, 18-cylinder, turbocharged & intercooled |
| Rated Power | 4,050 kW @ 750 RPM |
| Electrical Output | 4,000 kWe (approx.) |
| Voltage | 6,300 V (50 Hz) / 4,160 V (60 Hz) |
| Frequency | 50 Hz / 60 Hz |
| Bore × Stroke | 280 mm × 320 mm |
| Fuel Type | HFO (Heavy Fuel Oil) |
| Dimensions (L × W × H) | 7,530 mm × 2,715 mm × 4,490 mm |
| Dry Weight | 51,000 kg |
| Production Year | 2024 (new units available) |
Packaging
After Sales Warranty
In terms of packaging, all equipment is supplied largely modularized. Necessary bolts, studs, or screws to install the equipment on the foundations or elevated platforms/walkways are included。
For aftersales service, customers can expect a comprehensive package that includes quality management, project engineering, and logistics support。
As for warranty, the MAN 18V28/32 generator sets come with a warranty of 1 year。 This warranty covers the engine and its components, providing assurance of the product's quality and reliability。
