Intelligent window 230v mini dc electric linear valve actuator

Intelligent Window 230v Mini DC Electric Linear Actuator

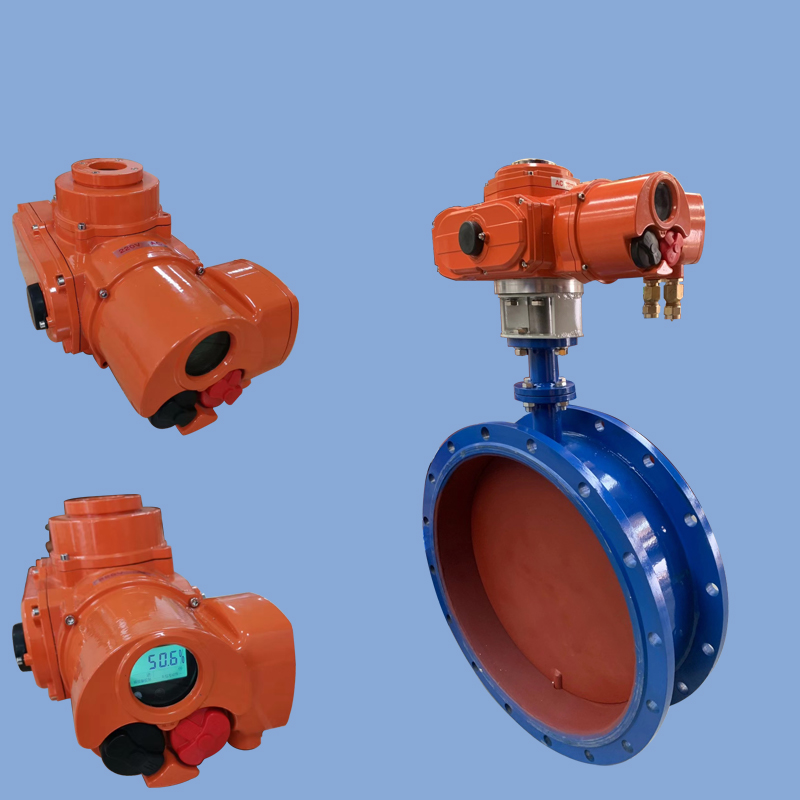

PS intelligent electric actuator product features

PS series intelligent electric actuator products are composed of PSL intelligent straight-stroke electric actuator and PSQ intelligent quarter-turn actuator.

Main features of the product:

Simple structure, small size, light weight, easy to install and maintain.

The transmission adopts small clearance, which has high efficiency, low noise, long service life, stable and reliable, and no need to refuel.

It has a live electric hand function and can be operated with the up or down button.

It has a digital display, which can be intuitive to the control signal value, feedback signal value, and electric hand operation value.

It has a break control signal fault judgment, alarm and protection function, which means that the actuator can be fully open or fully closed, or maintained, or set to any value between 0-100% when the signal is broken.

It has the function of valve blocking fault judgment, alarm and protection.

It uses upper/lower limit switches on the hardware. The PSQ product is equipped with a torque protection switch that allows the actuator to have multiple protection functions.

Intelligent controller: high precision, high reliability and strong anti-interference ability.

Integrated structure design, the valve position feedback component and servo amplifier are two independent components inside the actuator. They directly accept control signals such as 4-12mA/12-20mA/4-20mA/1-5V. They are output as a 4-20mA/1-5V position feedback signal with self-diagnostics for ease of use and adjustment.

The valve position feedback component adopts full-sealing, high-precision and high-abrasion conductive potentiometer, which has the characteristics of small volume, high precision, small dead zone, long service life, stable and reliable.

The stroke of the PSL actuator is adjustable to facilitate connection with the valve; it is connected by a flexible disc spring, which can preset the valve closing force to ensure reliable shutoff of the valve and prevent leakage.

Related Products

Packaging

After Sales Warranty

Shipment term:

1. Orders processed timely after the payment verification .

2. Terms of Deliver: FOB / CFR / CIF / EXW etc.

3. Due to stock status and time differences , we will choose to ship your item from our first available warehouse for fast delivery .

Payment Term:

1. Accept T/T, D/A, D/P, L/C, West Union with 30% Deposit.

2. Advance payment should be made within 3 days of order .

Our Services:

Our company provides you with the following services free of charge:

1. All-round electric actuator and valve technology selection service

2. High-quality post-product maintenance and technical analysis services

3. Accept other related cooperation.
