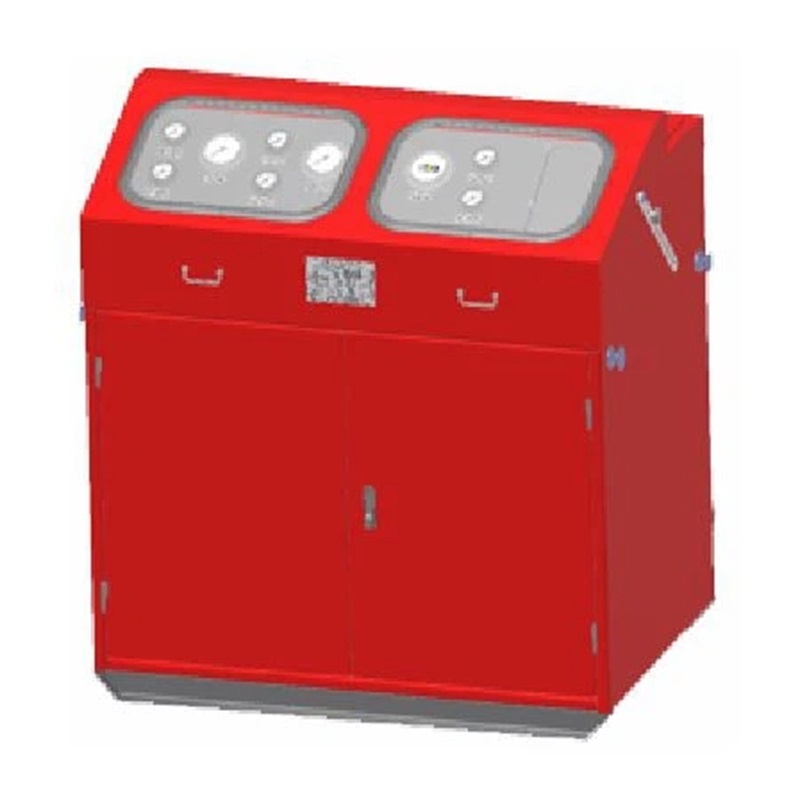

Electric Flat Valve Control Box
Brief introduction
The electric valve control device is a control unit that can control 1 electric regulating valve and 5 electric flat valves, and an indispensable equipment for achieving manual control, automatic control, and remote control of valves. It can remotely control the opening and closing of electric valves, with data about various valve operating status, fault status, opening/closing position and opening degree displayed on the control panel. Besides, it is designed with ESD function.
Performance and features
The electric valve control device can reduce the labor intensity of operators and have good environmental applicability. It is easy to achieve remote control by viewing the opening/closing position of the electric flat valve through a remote-control computer, which is beneficial for the automation of the entire system and makes control more convenient. Besides, it provides a wide range of output torque.
Technical parameters
| Power supply | 380VAC/50Hz |
| Number of electric valves controlled | multiple |
| Electric valve type | open-close type and regulating type |
| Power consumption | calculated based on the number of electric valves controlled |
| Explosion proof rating | Ex dbⅡB T4 Gb |
| IP rating | IP56 |
| Overall dimension | 1130 (↕) ×830 (↔) ×400 (↗) (Note: these are the overall dimensions of 5-way electric valve control device) |
Packaging
After Sales Warranty
Standard export package
One year warranty is provided from the date of shipment
