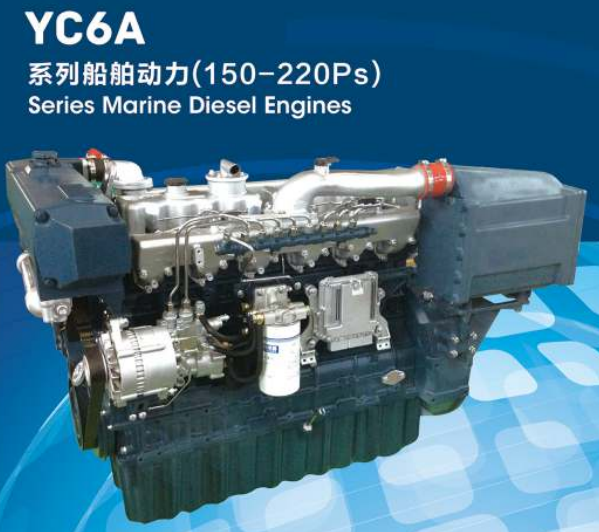

YUCHAI YC6A Series Marine Engines 112-162KW
Cylinder block, cylinder head use high strength alloy to cast manufacturing ,better rigid, with integral type crankshaft and sliding bearing ,small volume light weight , high reliability . Overhaul period is more than 10000 hours.
Model | YC6A 190C/195C | YC6A 200L/220L | YC6A 170C | YC6108ZLCB |
Type | Vertical,Inline,water-cooled,4-stock,Direct injection | |||
Air intake | Turbocharged &Inter-cooled | |||
Cylinders Bore X strock | 6 cylinders 108X132 | 6 cylinders 108X132 | 6 cylinders 108X132 | 6 cylinders 108X132 |
Continuous power/Speed | 140/145KW 1800/2300RPM | 145/162KW 1500/2300RPM | 125KW 1500RPM | 112KW 1500RPM |
One-hour power/speed | 154/160KW 1858/2374RPM | 160/178KW 1548/2374RPM | 138KW 1548RPM | 123KW 1548RPM |
Certificate | ZC,CCS IMO | |||
Net weight | 770KG | 770/750KG | 770KG | 770KG |
LxWxH(mm) | 1416x921x1092 | 1340x870x1100 | 1416x921x1092 | 1416x921x1092 |
Cylinder block, cylinder head use high strength alloy to cast manufacturing ,better rigid, with integral type crankshaft and sliding bearing ,small volume light weight , high reliability . Overhaul period is more than 10000 hours.
Model | YC6A 190C/195C | YC6A 200L/220L | YC6A 170C | YC6108ZLCB |
Type | Vertical,Inline,water-cooled,4-stock,Direct injection | |||
Air intake | Turbocharged &Inter-cooled | |||
Cylinders Bore X strock | 6 cylinders 108X132 | 6 cylinders 108X132 | 6 cylinders 108X132 | 6 cylinders 108X132 |
Continuous power/Speed | 140/145KW 1800/2300RPM | 145/162KW 1500/2300RPM | 125KW 1500RPM | 112KW 1500RPM |
One-hour power/speed | 154/160KW 1858/2374RPM | 160/178KW 1548/2374RPM | 138KW 1548RPM | 123KW 1548RPM |
Certificate | ZC,CCS IMO | |||
Net weight | 770KG | 770/750KG | 770KG | 770KG |
LxWxH(mm) | 1416x921x1092 | 1340x870x1100 | 1416x921x1092 | 1416x921x1092 |
