Standard Military Defensive Barriers | Earth-filled Gabion Barrier
A Rapid Deployment Barriers to Protect Troops In Conflicts Around The World.
The defensive gation barriers comes as a flat packed unit and can be assembled faster with minimal manpower, handling equipment and fill material.
A 10m long wall will take two people and one front-loading machine only 20 minutes to construct. Using sandbags, the same wall will take eight people eight hours to build and needs three time as much fill material.
Defensive Barrier units unfold and are positioned, pinned together and filled with local materials like sand or earth. Because the units are pinned together, they can create limitless defensive structures anywhere, anytime.
Defence Barriers Structure
Our Defence Barriers unit is a multi-cellular barrier system manufactured from welded Hot-dipped galvanised steel wire mesh and joined with vertical, helical-coil joints. The units are lined with a heavy-duty non-woven polypropylene geotextile. When joined and filled, the system can be used to create barriers of exceptional strength and structural integrity.
How High Can You Build Your Defense Barrier Wall ?
The main rule regarding the building of walls made from Hesly Defensive Barrier Units is that the height of the wall must never exceed 2 x the width of the base. For example, a wall with a 1m (3’3”) wide base should not exceed 2m (6’6”) height.
Where can the defensive barriers be used for ?
- Military Defensive Walls
- Accommodation Bunkers
- Fowarder Operating Bases
- Perimeter Security
- Blast & Ballistic Protection
- Command & Control Centres
- Army Trianing Grounds & Shoot Houses
- Miliary Compounds
- Ammunition Storage
- Explosive Traverses
- Hostile Vehicle Mitigation
General Specifications Sheet - HESLY Military Defensive Barrier
Model | Illustration | Height | Width | Length | Cell No.s |

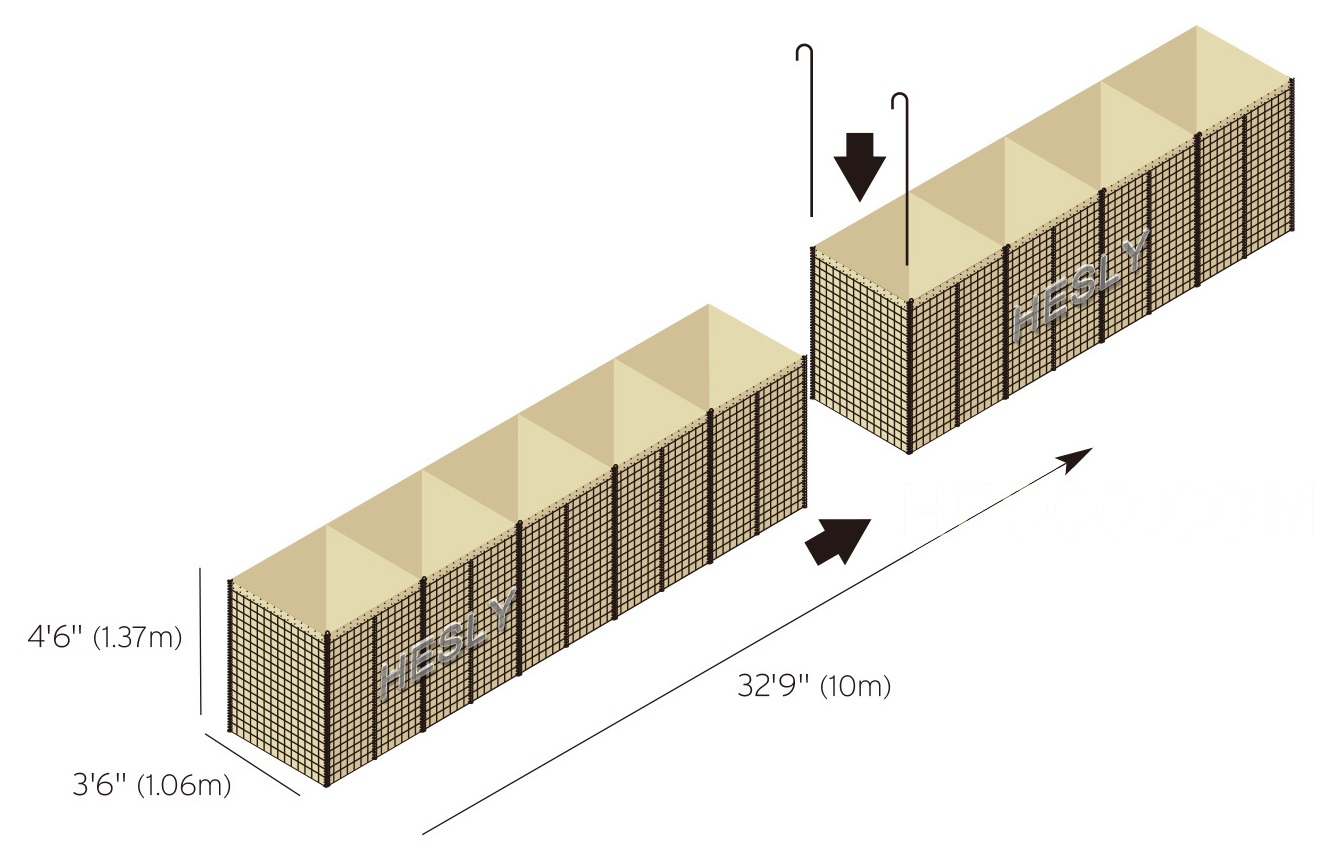

HMIL-1 | 1.37m | 1.06m | 10.00m | 9 cells 5cells + 4cells | |

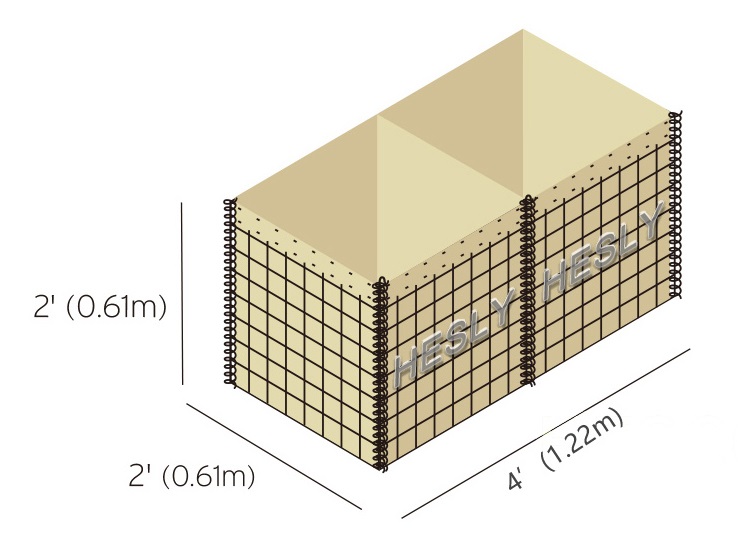

HMIL-2 | 0.61m | 0.61m | 1.22m | 2 cells | |

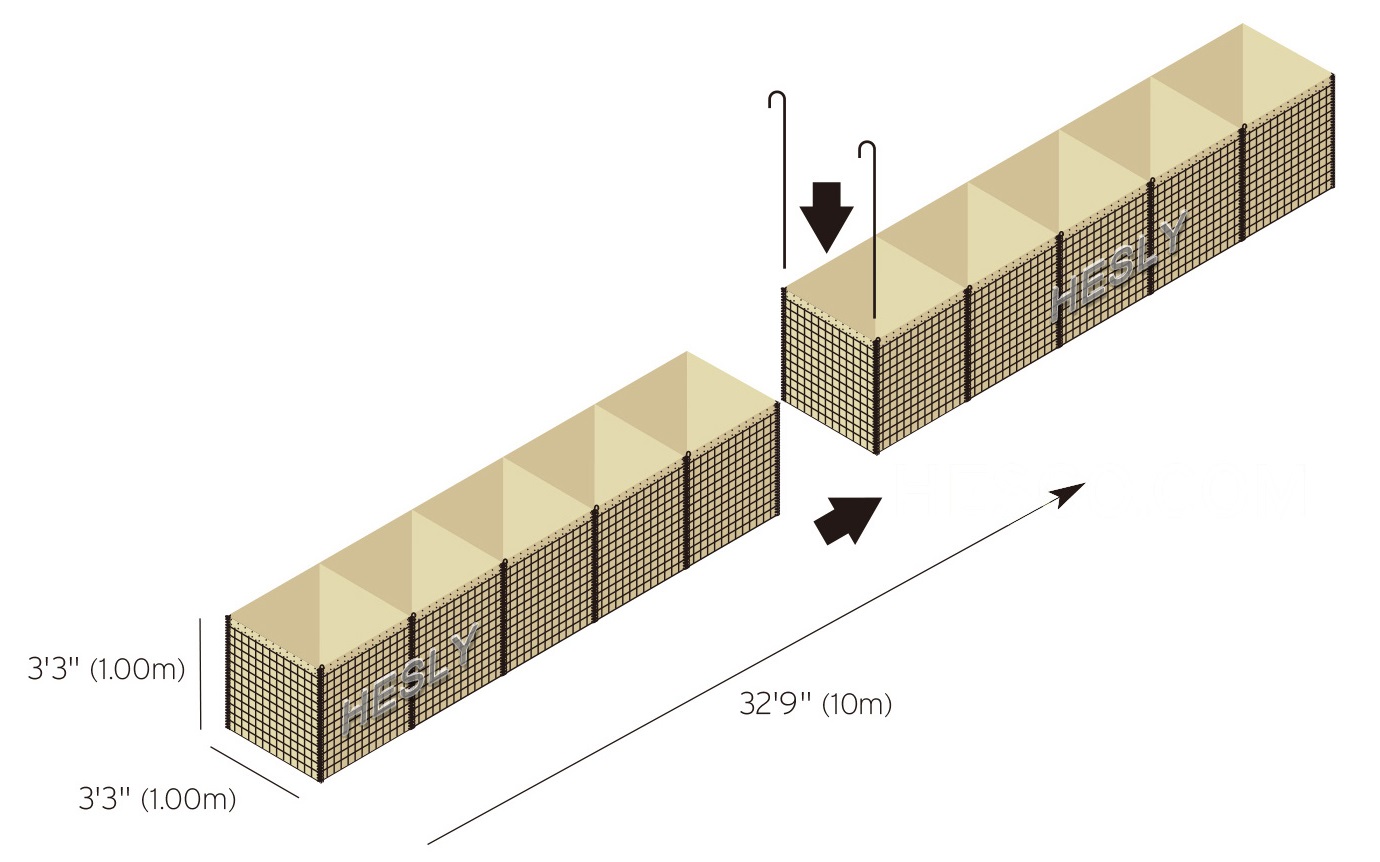

HMIL-3 | 1.0m | 1.0m | 10m | 10 cells 5cells × 2 | |

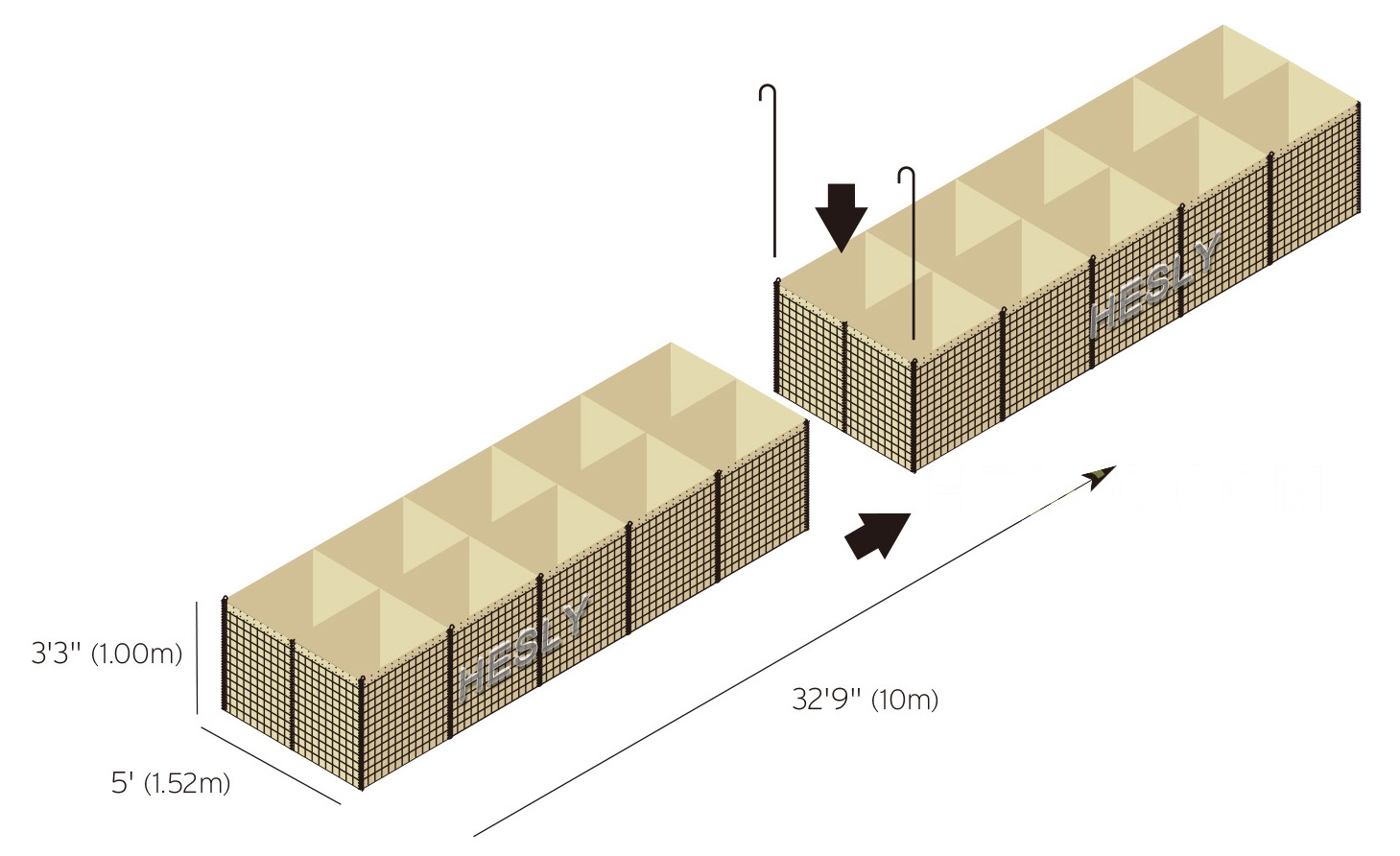

HMIL-4 | 1.0m | 1.52m | 10m | 20 cells 2 rows=10cells×2 | |

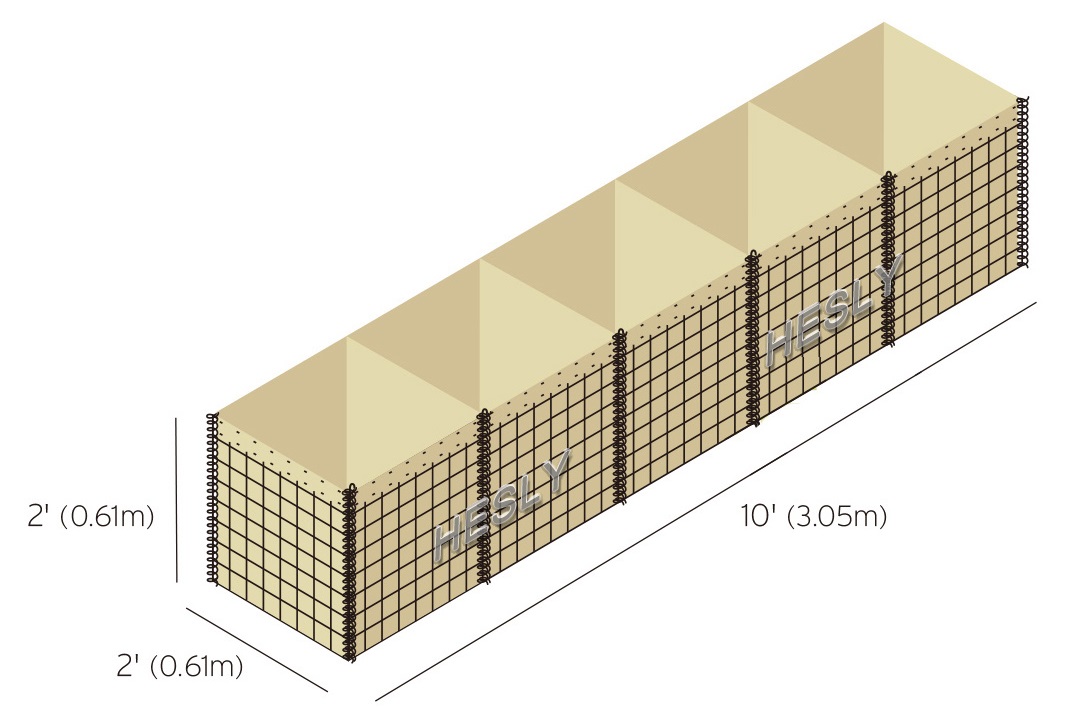

HMIL-5 | 0.61m | 0.61m | 3.05m | 5 cells | |

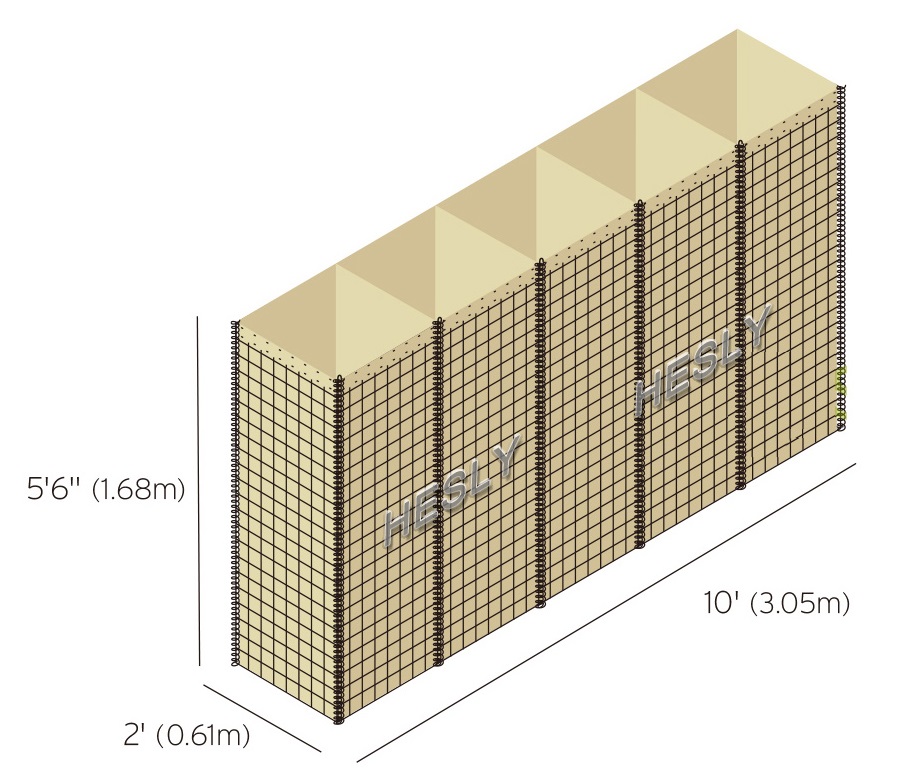

HMIL-6 | 1.68m | 0.61m | 3.05m | 5 cells | |

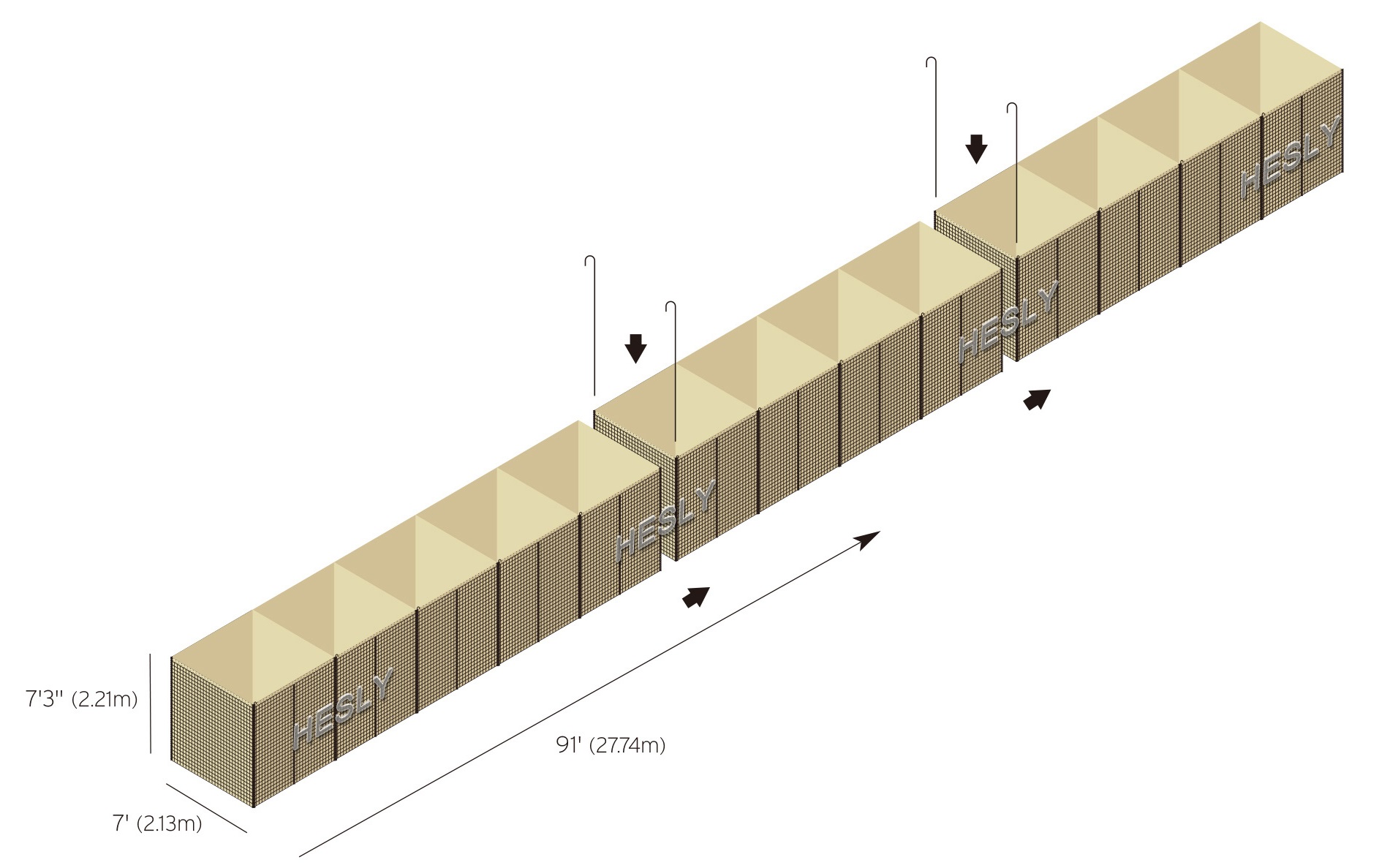

HMIL-7 | 2.21m | 2.13m | 27.74m | 13 cells 5cells+4cells×2 | |

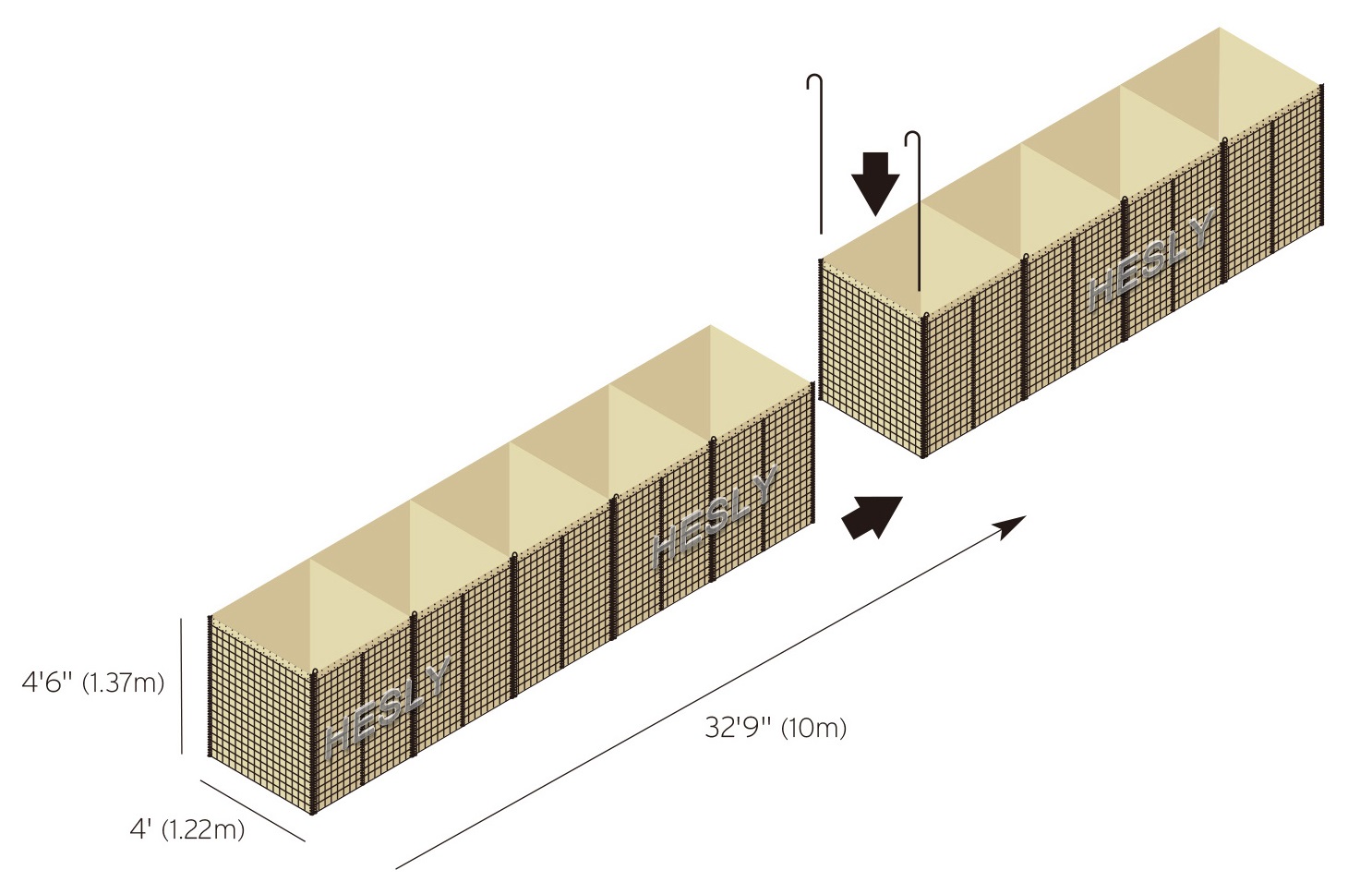

HMIL-8 | 1.37m | 1.22m | 10m | 9cells | |

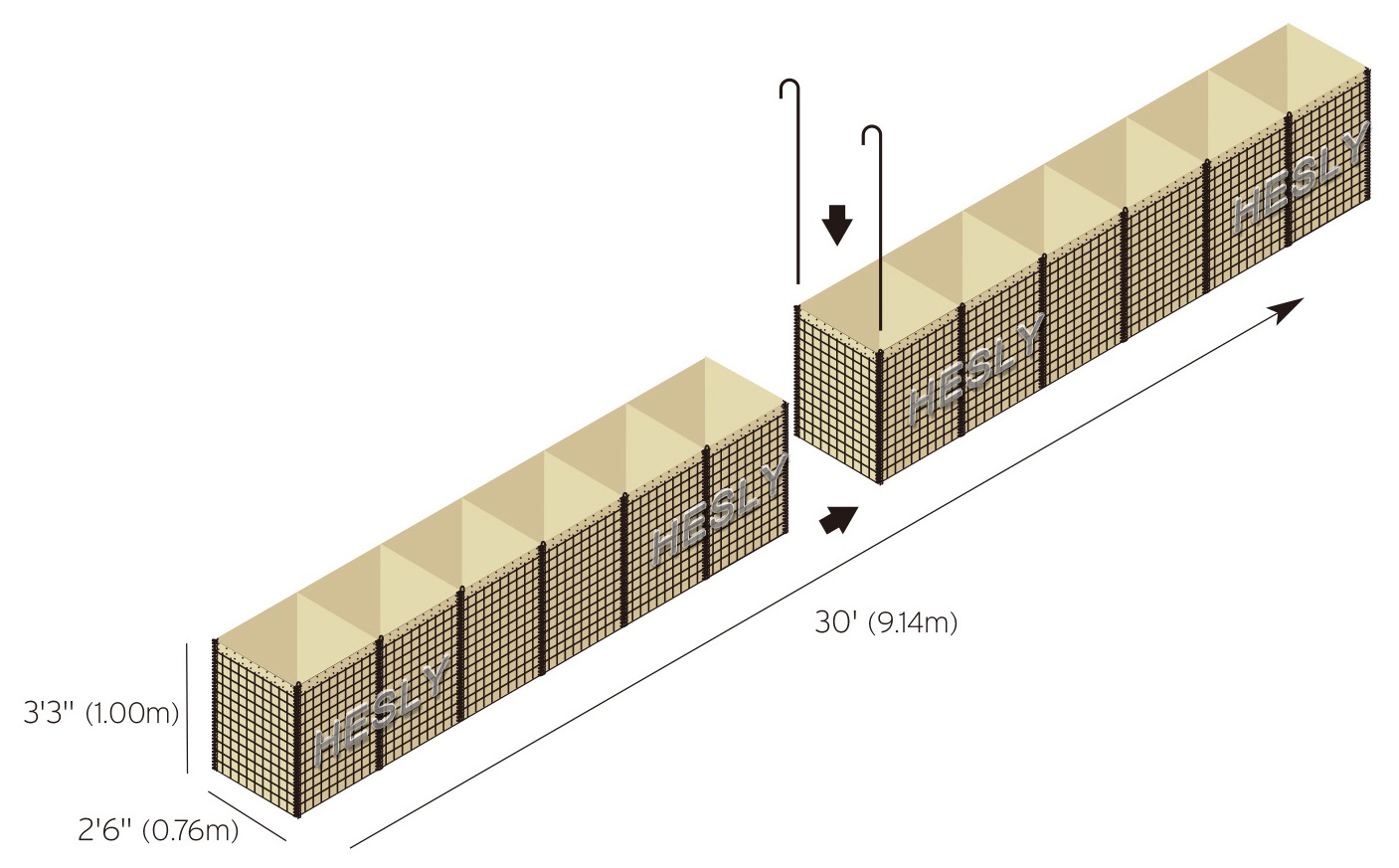

HMIL-9 | 1.0m | 0.76m | 9.14m | 12 cells 6cells×2 | |

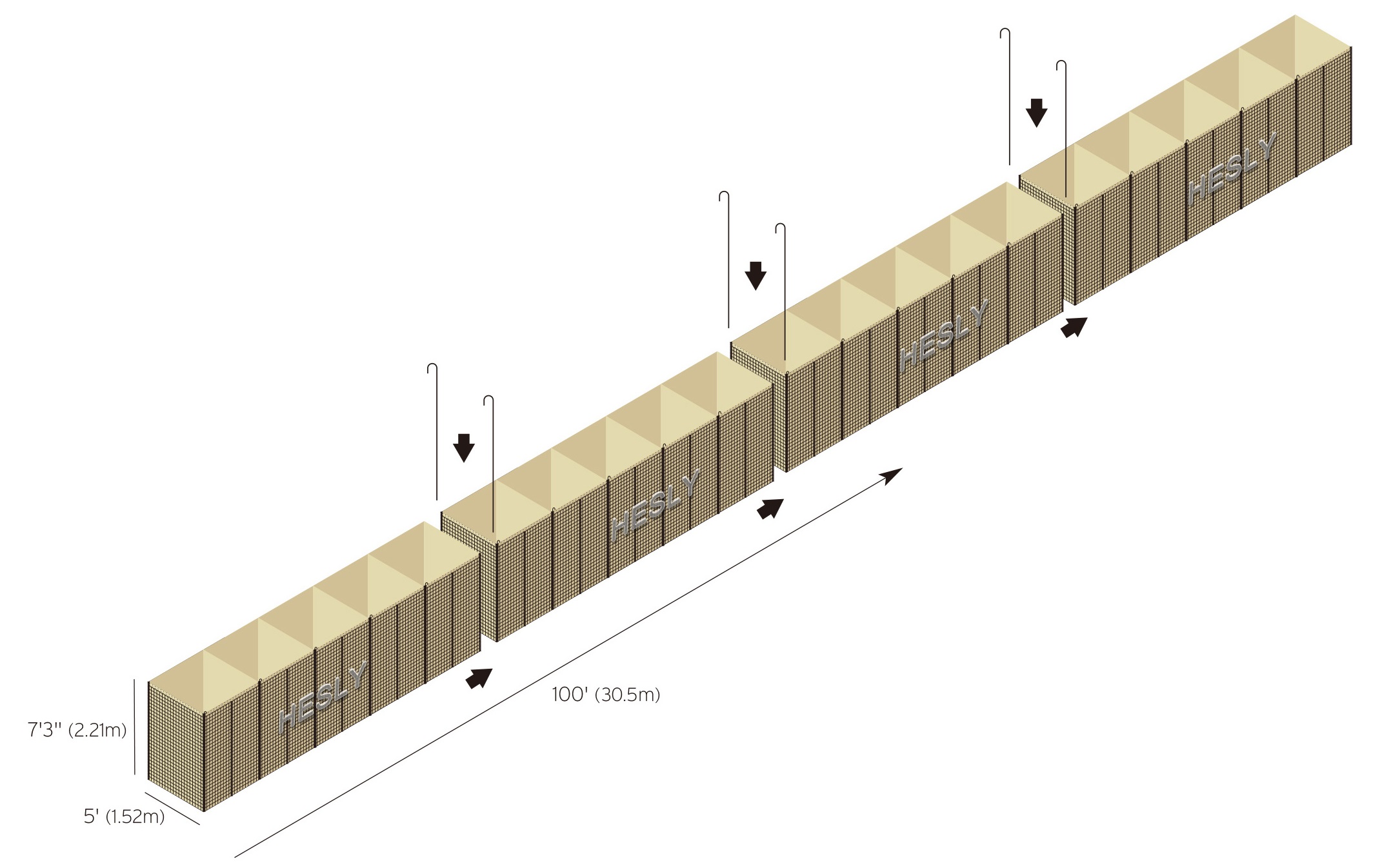

HMIL-10 | 2.21m | 1.52m | 30.5m | 20 cells 5cells×2 | |

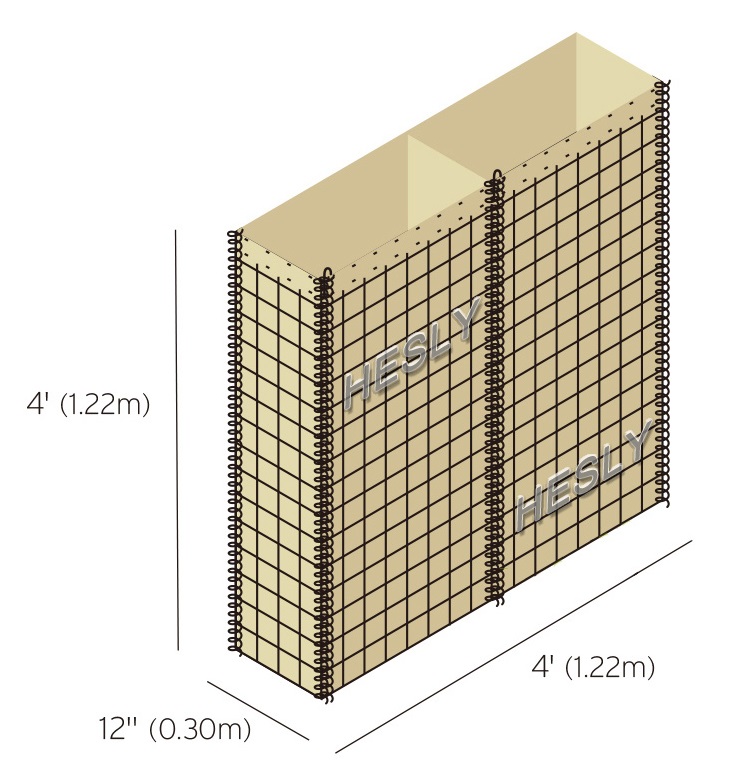

HMIL-11 | 1.22m | 0.30m | 1.22m | 2 cells | |

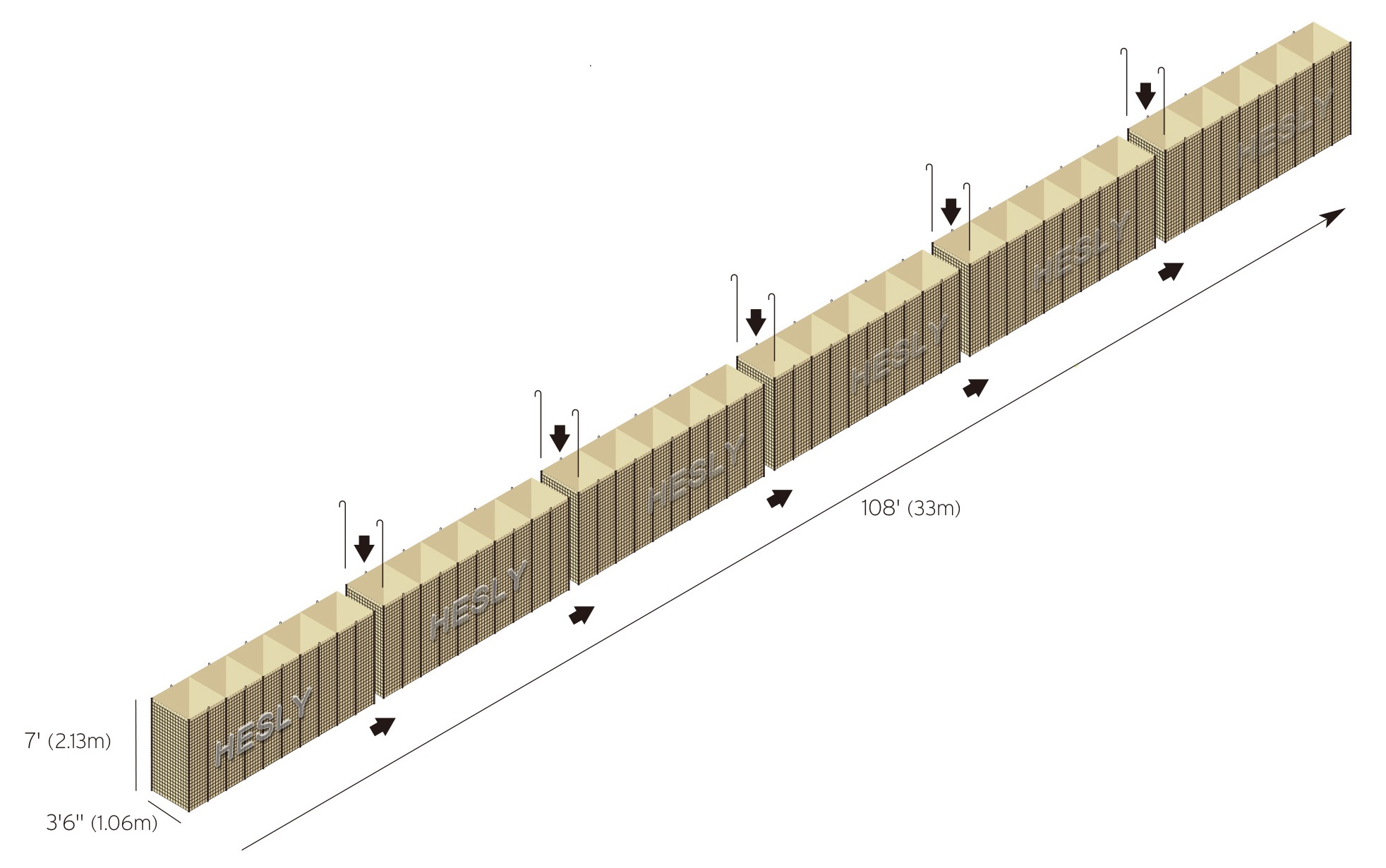

HMIL-12 | 2.13m | 1.06m | 33m | 30cells 5cells×6 | |

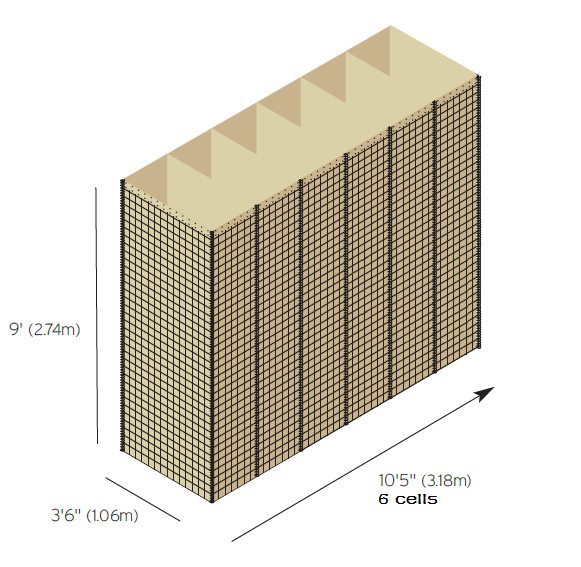

HMIL-13 | 2.74m | 1.06m | 3.18m | 6cells |
NOTE: Other size and specifications can be made as per requirements or drawing.
Packaging
After Sales Warranty
Package & Delivery
The defence barrrier is heavy cargo. Generally, we packed with pallet for load / unload easily.
Defence Barrier Package | Packaged On Pallets | Loading Container |
