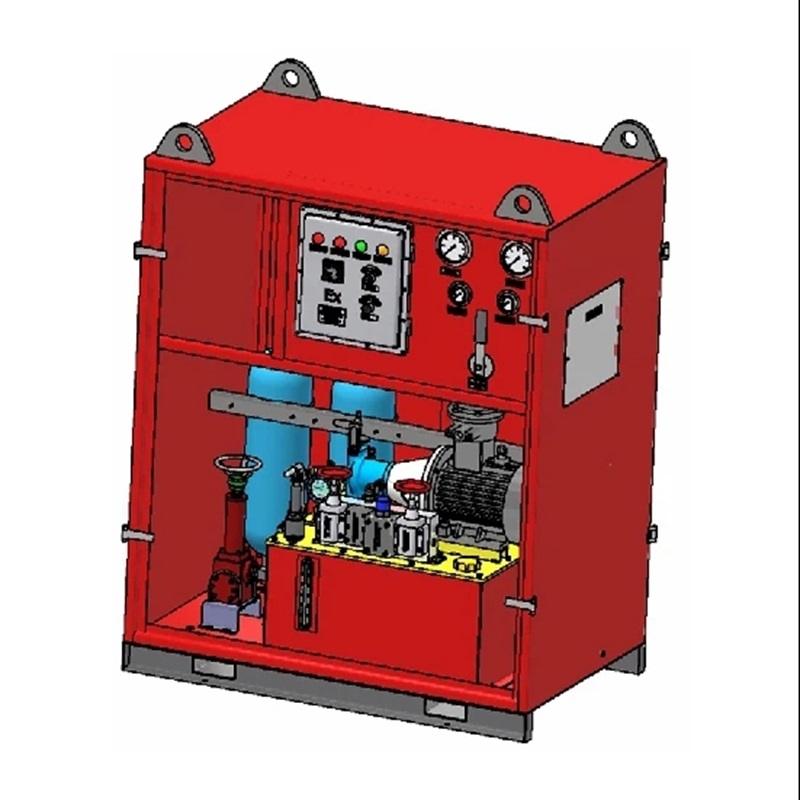

Hydraulic Flat Valve Control Box

Brief introduction

The hydraulic flat valve control box, a device used to control hydraulic flat valves, uses electric hydraulic pump as the hydraulic source and adopts hydraulic drive control mode. Its structure is simple and reliable, providing a large output torque, and the output torque can be adjusted by a high flow pressure regulating valve to regulate the driving pressure. It can be adjusted according to different work requirements. In the event of power interruption caused by an accident, the accumulator can still be used for a full open or full close operation. It is widely used in multiple industries such as petrochemicals and natural gas, and has become an important part of industrial automation.

Performance and features

The hydraulic flat valve control box adopts electric hydraulic pump as the hydraulic source, with the hydraulic control system mainly composed of box body, oil tank, accumulator group, (pneumatic) electric hydraulic pump, explosion-proof magnetic starter, explosion-proof pressure controller, manual hydraulic pump, overflow valve, and manual three position four-way rotary valve, and can control the closing and opening of multiple flat valves. Besides, It can be used in harsh environments and also has automatic protection function. Once any fault occurs, it will automatically stop running to avoid accidents.

Packaging

After Sales Warranty

Standard export package

One year warranty is provided from the date of shipment
