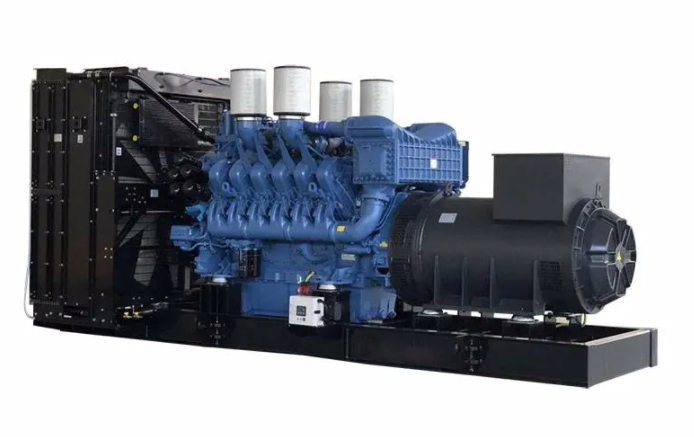

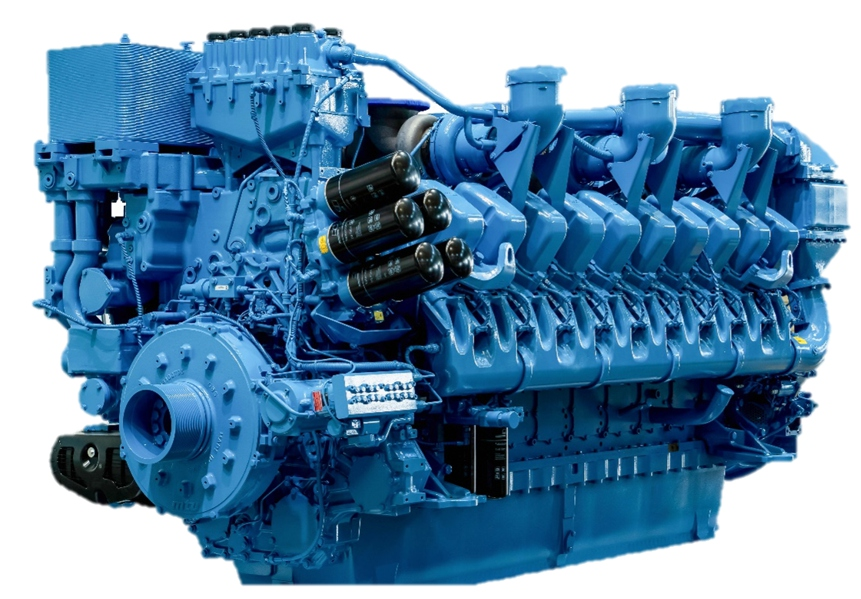

MTU 4000 series engines and diesel/gas generator sets used for marine and standby power for hospital,data center and mining industry
BFMP provides MTU 4000 series engines and diesel/gas generator sets used for marine and standby power for hospital,data center and mining industry,produced by YUCHAI in China
BFMP provides MTU 4000 series engines and diesel/gas generator sets used for marine and standby power for hospital,data center and mining industry,produced by YUCHAI in China
Typical Applications:
Construction sites,remote areas
Industrial and manufacturing plants,residential areas
Data centers
Peak shaving,grid stability and capacity programs
TECHNICAL DATA
Technical Data | |
Cylinder | 12/16/20 |
Bore/Stroke | 170mm/210mm |
Displacement/Cylinder | 4.77L |
Total displacement | 12V-57.2L,16V-76.3L,20V-95.4L |
Compression ratio | 16.4 |
Injection system | High pressure common rail |
Electronics | ECU9&SMART |
DIMENSIONS AND MASS
Engine | Dimensions(L×W×H)mm | Mass,kg |
12V | 2850×1800×2100 | |
16V | 3200×1800×2150 | |
20V | 4000×1800×2200 |
DIMENSIONS AND MASS
Engine | Dimensions(L×W×H)mm | Mass,kg |
12V | 2850×1800×2100 | |
16V | 3200×1800×2150 | |
20V | 4000×1800×2200 |
ENGINE PORTFOLIO
|
Application | Continuous Power (COP)/3A |
Prime Power (PRP)/3B | Stand-by Power (ESP)/3D | Standby Power with Overload Power /3E | Data Center Continuous Power (DCP)/3F | Grid Stability Power(3G) Power (3G) |
Model | kW at 1500rpm | |||||
12V4000G23RF | -- | 1205 | | |||
12V4000G23F |
-- | 1420 |
1575 | |
1420 | 1420 |
12V4000G63F | 1310 | 1575 |
1750 | |
1575 | 1575 |
16V4000G23F | -- | 1798 |
1965 | |
1798 | 1798 |
16V4000G63F | 1635 | 1965 |
2185 | |
1965 | 1965 |
20V⁴000G23F | -- | 2200 |
2420 | |
2200 | 2200 |
20V4000G63F | 2000 | 2420 |
2670 | |
2420 | 2420 |
20V4000G63LF | 2200 | 2590 |
2850 | |
2590 | 2590 |
Model | kW at1800rpm | |||||
12V4000G43S | 1190 | 1520 |
1736 | |
1520 | 1520 |
12V4000G83S | 1420 | 1736 |
1910 | |
1736 | 1736 |
16V4000G⁴3S | 1680 | 2020 |
2280 | |
2020 | 2020 |
16V4000G83S | 1950 | 2280 |
2500 | |
2280 | 2280 |
20V4000G43S | -- | 2490 |
2740 | |
2490 | 2490 |
20V4000G83S | 2230 | 2740 |
3010 | |
2740 | 2740 |
20V4000G83LS | 2490 | 3010 |
3490 | |
3010 | 3010 |
Packaging
After Sales Warranty
12 month
